Making animations and GIFs

Stringing together plots into GIFs

Introduction: data-driven GIFs

Nothing beats a short gif-length video for driving awareness of ML work on social media. Even when the work involves complex algorithms on data, a few plots of the algorithm’s output ranging over different inputs can be worth an entire abstract.

Here’s a short way to make a data-driven gif from a sequence of data-driven plots.

Code

Most of the code is wrapped in a single function, which makes scatter plots with matplotlib.

The wonderful library celluloid is used to string together frames (images). The function below returns the animation as a matplotlib “ArtistAnimation” object.

import matplotlib.pyplot as plt
from IPython.display import HTML
from celluloid import Camera

def create_animation(coords, clrarr, niter=None, qnorm=True):
    """
    Params:
        coords: An array with each row representing an observation (point in scatterplot). First and second columns are treated as x and y coordinates.
        clrarr: One of two possibilities:
            - List of arrays, representing color values at each frame.
            - Function taking one argument, the iteration number. In this case niter must be specified.

    Returns:
        animation: A matplotlib ArtistAnimation object
    """
    fig, axes = plt.subplots(1,1, figsize=(6,6))
    plt.tight_layout()
    camera = Camera(fig)

    axes.axes.xaxis.set_ticks([])
    axes.axes.yaxis.set_ticks([])
    plt.subplots_adjust(wspace=0, hspace=0)
    #fig.subplots_adjust(left=None, bottom=None, right=None, top=None, wspace=None, hspace=None)

    num_iterations = len(clrarr) if niter is None else niter
    for it in range(num_iterations):
        if it % 10 == 0:
            print(f"iter: [{it}/{num_iterations}]")
        if niter is None:
            new_colors = clrarr[it]
        else:   # clrarr should be a function.
            # TBD: If clrarr is not a function, throw an exception
            # If clrarr is a function, assume it follows the spec above. Then:
            new_colors = clrarr(it)
        plot_arr = scipy.stats.rankdata(new_colors) if qnorm else new_colors
        axes.scatter(coords[:,0], coords[:,1], c=plot_arr, s=0.3)
        camera.snap()
        plt.show()
    animation = camera.animate()
    return animation

Example: ranking on a data manifold

I’ll demonstrate label propagation on single-cell gene expression data from the GTEx consortium, as I’ve written about elsewhere.

import sys, numpy as np, time, scipy
import matplotlib.pyplot as plt
%matplotlib inline

import anndata, scanpy as sc

print('Packages imported.')


# !curl https://storage.googleapis.com/gtex_analysis_v9/snrna_seq_data/GTEx_8_tissues_snRNAseq_atlas_071421.public_obs.h5ad -o GTEx_8_tissues_snRNAseq_atlas_071421.public_obs.h5ad

gtex9_all_adta_name = 'GTEx_8_tissues_snRNAseq_atlas_071421.public_obs.h5ad'
file_pfx = '../../files/omics/single_cell/'
fname = file_pfx + gtex9_all_adta_name
adta = sc.read(fname)

adta.obs['Broad cell type'].value_counts()

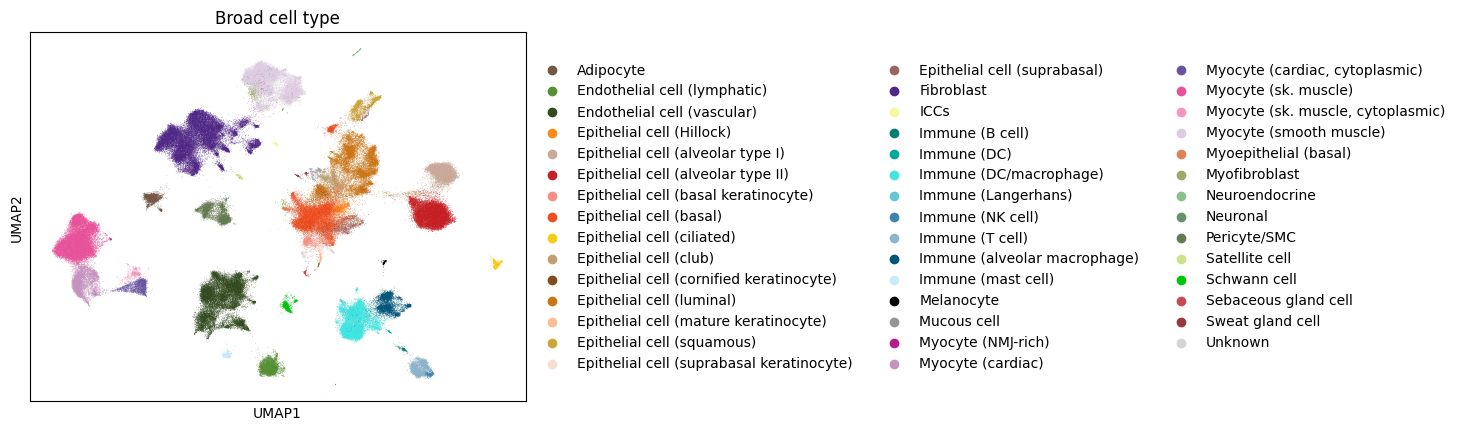

sc.pl.umap(adta, color="Broad cell type")

print(adta)

Packages imported.

AnnData object with n_obs × n_vars = 209126 × 17695
    obs: 'n_genes', 'fpr', 'tissue', 'prep', 'individual', 'nGenes', 'nUMIs', 'PercentMito', 'PercentRibo', 'Age_bin', 'Sex', 'Sample ID', 'Participant ID', 'Sample ID short', 'RIN score from PAXgene tissue Aliquot', 'RIN score from Frozen tissue Aliquot', 'Autolysis Score', 'Sample Ischemic Time (mins)', 'Tissue Site Detail', 'scrublet', 'scrublet_score', 'barcode', 'batch', 'n_counts', 'tissue-individual-prep', 'Broad cell type', 'Granular cell type', 'introns', 'junctions', 'exons', 'sense', 'antisense', 'intergenic', 'batch-barcode', 'exon_ratio', 'intron_ratio', 'junction_ratio', 'log10_nUMIs', 'leiden', 'leiden_tissue', 'Tissue composition', 'Cell types level 2', 'Cell types level 3', 'Broad cell type numbers', 'Broad cell type (numbers)', 'Tissue', 'channel'
    var: 'gene_ids', 'Chromosome', 'Source', 'Start', 'End', 'Strand', 'gene_name', 'gene_source', 'gene_biotype', 'gene_length', 'gene_coding_length', 'Approved symbol', 'Approved name', 'Status', 'Previous symbols', 'Alias symbols', 'gene_include', 'n_cells'
    uns: 'Broad cell type (numbers)_colors', 'Broad cell type numbers_colors', 'Broad cell type_colors', 'Broad cell type_logregcv_vae_colors', 'Broad cell type_sizes', 'Granular cell type_colors', 'Participant ID_colors', 'Sex_colors', 'Tissue composition_colors', 'Tissue_colors', "dendrogram_['Broad cell type']", 'leiden', 'leiden_colors', 'leiden_sub_colors', 'neighbors', 'paga', 'prep_colors', 'tissue_colors', 'umap'
    obsm: 'X_pca', 'X_umap', 'X_umap_tissue', 'X_vae_mean', 'X_vae_mean_tissue', 'X_vae_samples', 'X_vae_var'
    varm: 'spring_leiden_sub'
    layers: 'counts'
    obsp: 'connectivities', 'distances'

Ranking algorithm

I’ll use a brief implementation of the algorithm written in another post. Please see that post for the full description.

file_pfx = "../../files/chem/"

decomp_tools_path = file_pfx + "combinatorial_chemistry_decomposition_tools.py"

from importlib.machinery import SourceFileLoader
label_propagation = SourceFileLoader("label_propagation", decomp_tools_path).load_module()

Run algorithm and generate animation

We’ll pick 2 points to be the query, and highlight the diffusion of ranks from these two seed query points.

carr = np.zeros((adta.shape[0], 1))

# Arbitrary points as the initial query
carr[0, 0] = 1
carr[100000, 0] = 1

itime = time.time()
cumuvals = label_propagation.label_propagation(carr, adta.obsp['connectivities'], np.ravel(carr == 1), param_alpha=0.999, method='iterative')
print("Time taken for label propagation: {}".format(time.time() - itime))

Now we render the animation.

itime = time.time()

coords = adta.obsm['X_umap']
animation = create_animation(coords, cumuvals)

print("Time taken to generate frames: {}".format(time.time() - itime))

Render animation

Now we can render this inline in the browser; there are other ways to do it, which ran into more painful dependency issues when I tried them.

itime = time.time()

#HTML(animation.to_html5_video())
HTML(animation.to_jshtml())

print("Time taken to produce html animation: {}".format(time.time() - itime))

HTML(animation.to_jshtml())

Save animation

If necessary, the animation can be saved. An easy way to do this as an mp4 is to set up the ffmpeg MovieWriter and then run the following.

animation.save("ranking_search.mp4", dpi=200, fps=20)

Convert to GIF

We use the imageio package (Klein et al. 2023) to convert the images to a GIF.

import numpy as np
import matplotlib.pyplot as plt
from celluloid import Camera
from scipy.special import comb
from math import log

def probability_at_least_half_heads(k, p):
    return sum(comb(k, i) * p**i * (1-p)**(k-i) for i in range(int(0.5*k), k+1))

# Define the range of k and biases
k_values = [2, 4, 8, 16, 32, 64, 128, 256, 512, 1024]  # Number of coin flips
logbiases = np.linspace(-5, 0, 100)  # Biases from 0.01 to 1

fig, ax = plt.subplots()
camera = Camera(fig)

for i in range(len(k_values)):
    for k in k_values[:i+1]:
        probabilities = [probability_at_least_half_heads(k, np.exp(p)) for p in logbiases]
        ax.plot(logbiases, probabilities, label=f'k={k}' if k == k_values[i] else '_nolegend_')
    ax.legend(loc='upper left')
    ax.set_xlabel('Negative loss (log Pr(single coin head))')
    ax.set_ylabel('Probability of event')
    ax.set_title('Chance of at least half heads in k coin flips')
    camera.snap()

animation = camera.animate()
animation.save('coin_flip_probability.gif', writer='pillow')

References

Klein, Almar, Sebastian Wallkötter, Steven Silvester, Anthony Tanbakuchi, actions-user, Paul Müller, Juan Nunez-Iglesias, et al. 2023. “Imageio/Imageio: V2.31.1.” Zenodo. https://doi.org/10.5281/zenodo.8025955.
